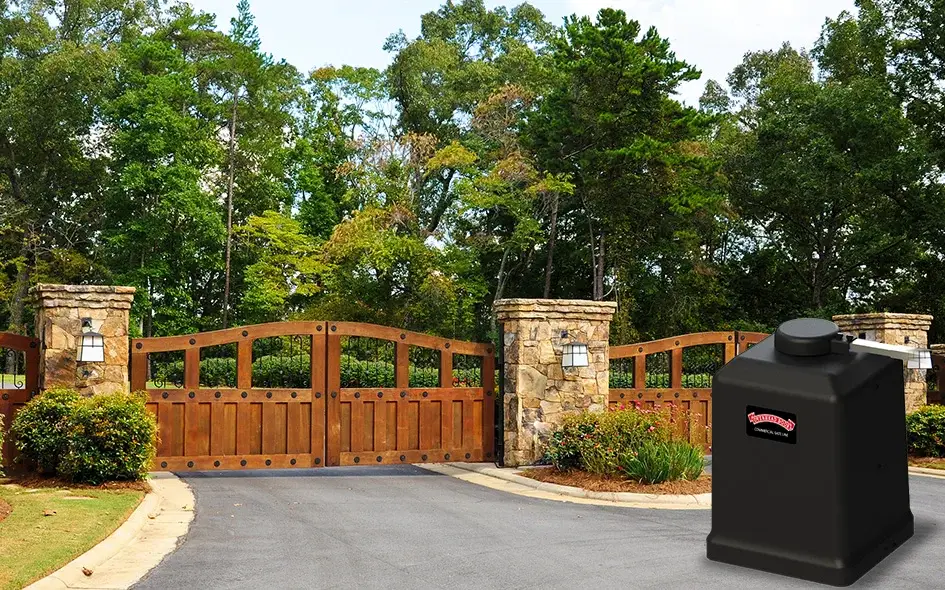

Commercial Vehicular Swing Gate Operator
RCSW36V
The model RCSW36V swing gate operator is designed for commercial gates that require continuous duty cycle capability. Robust mechanical design and advanced control features set a new standard for productivity.
Standard Features
- Dual line backlit LCD display
- Adjustable speed
- Advanced 315/390Mhz radio receiver stores up to 250 CodeDodger® transmitters with unique IDs
- OHD Anywhere® ready (with optional Wi-Fi board)
- Timer to close
- Battery backup
- Up to 150 cycles on fully charged batteries
- On-board solar charge controller
- Split cover allows for full access to operator without removing arm
- Rack for pluggable loop detectors
- Surge protection on field wiring inputs
- Four monitored safety inputs
- Two auxiliary relays, configurable from LCD
- Built-in 7-day timer
- Primary/secondary control for dual gates
Specifications
- 115VAC, field adjustable to 230VAC
- 100% Continuous Duty Cycle
- Rated for gates up to 18ft wide and 1500lbs
- -20° to +60°C (-40° to +60°C with optional heater)
- (2) 7Ah batteries included
- 5 Year warranty
- UL 325 Listed, Class I, II, III, and IV
- 24VDC switched and constant accessory power, up to 800mA combined
