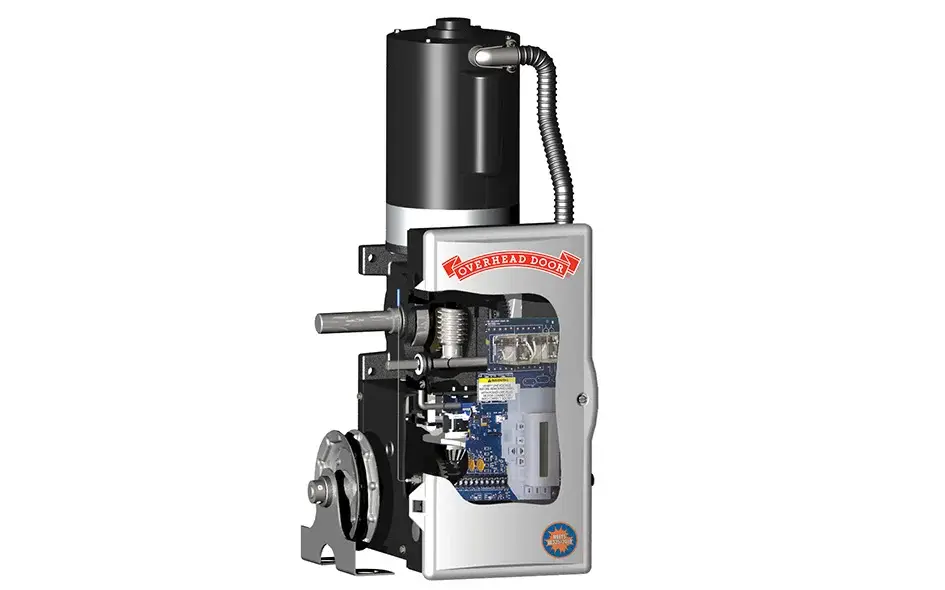

RHX® commercial door operator by Overhead Door Company, featuring heavy-duty design and various mounting options, with visible UL compliance label and warning notice.

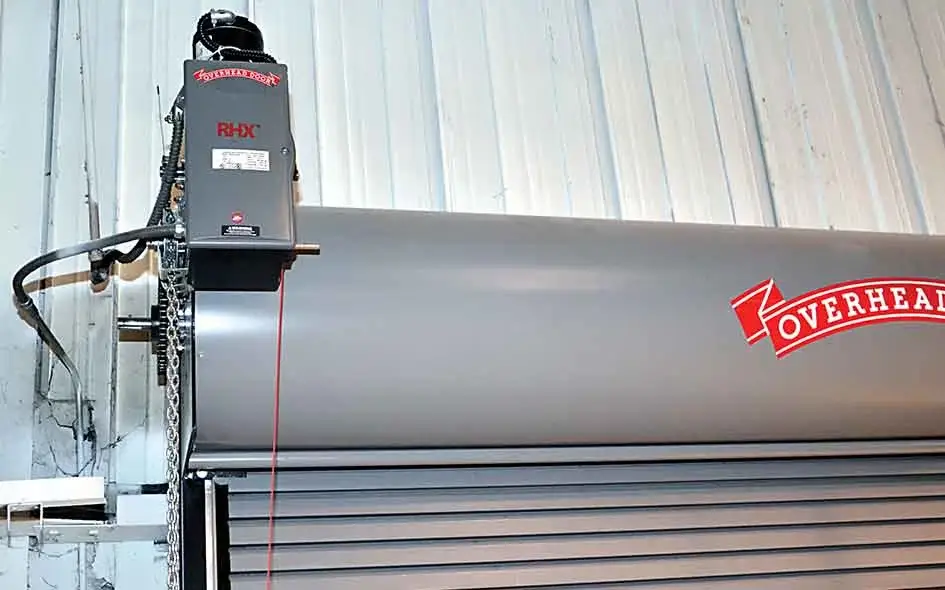

RHX® heavy-duty commercial door operator with visible internal components and Overhead Door branding, showcasing advanced technology and compliance with UL standards.

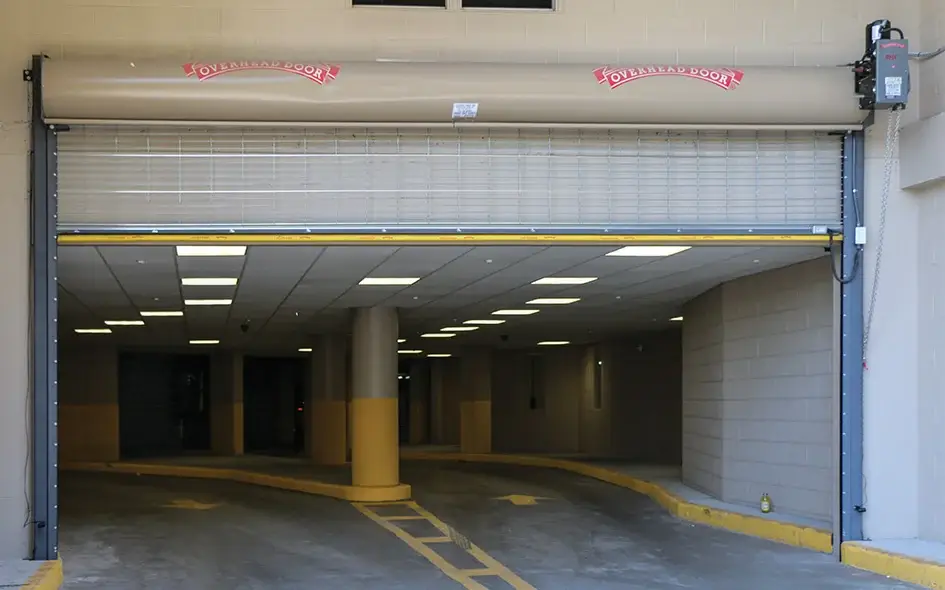

Overhead Door RHX® commercial door operator installed in a parking garage entrance, showcasing heavy-duty design and secure functionality.

RHX® heavy duty commercial door operator mounted on a sectional door, featuring Overhead Door branding, showcasing innovative design and reliable operation for commercial applications.

RHX® Commercial Door Operator

Heavy Duty

The UL 325 2010 compliant RHX^® heavy duty commercial operators provide easy and reliable operation for the most stringent applications. This functionality comes from many innovative, state-of-the-art performance features.

Overview
Documents

Features
Mounting	A wide variety of mounting options are available to fit any application including: Sectional doors: Standard trolley, side mount trolley, and dual trolley applications. Side mount and center mount chain couple or direct couple to the door shaft with hoist. Hoist models are left or right-hand adjustable in the field. All models come standard with the DC brake system. Rolling steel doors: With hoist, front of hood, top of hood, bench mount and wall mount applications. Hoist models are left or right-hand adjustable in the field. All models come standard with the DC brake system.
Warranty	RHX® operator features a 2-year limited warranty. See installation manual for complete limitations and details.
Motor	Continuous duty motor available in 1/2, 3/4, 1 and 3 horsepower, single or three-phase. Totally enclosed non-ventilated (TENV) construction and totally enclosed fan cooled (TEFC) construction units are available as options. 3 horsepower models come standard with (TEFC) construction.
On board radio receiver	This standard feature can add radio functionality to every job with no additional cost for the receiver. Stores up to 250 CodeDodger® transmitters including the commercial dual frequency cycling versions.
Drive reduction	Primary reduction is worm gear running in oil bath. Secondary reduction is by chain and sprocket.
Direct coupling	Provides fast, easy installation with fewer parts and better structural support. Prevents chain slacking. Available on sectional side mount jackshaft and hoist units.
Mechanical brake system	24V DC disc brake. Fewer mechanical parts for improved reliability.
Clutch (standard with trolley; optional with hoist)	Adjustable disc-type helps protect door and operator from major damage should the door meet an obstruction. (Included in 14 and 26 RPM direct couple mounting kits)
Cycle counter	LCD (Liquid Crystal Display) clearly indicates the exact number of cycles logged for easy maintenance support.
Trolley rail assembly	High strength 2 inch rolled angle for added strength and durability.
Voltage freedom with Voltamatic®	One unit for single phase voltages (115/208/230V), one unit for three phase voltages (208/230/460V) and one unit for three phase 575V.
Extra door system durability with Progressive Braking*	DC brake system brings the door to a soft stop for less wear and tear on the system. * Patents # 6,737,823 and 6,388,412

Options
Models	RHX® Trolley – Sectional Door- standard, side mount or dual trolley RHX® Hoist – Sectional Door– side mount, center mount, chain or direct couple RHX® Hoist – Rolling Steel- front of hood, top of hood, bench mount or wall mount All RHX® Heavy Duty models available in: 1/2, 3/4, and 1 HP: Single phase 115/208/230V Three phase 208/230/460V Three phase 575V RHX® 3 HP: Three phase 208/230/460V Three phase 575V
Direct coupling (optional on sectional doors only)	Provides fast, easy installation and prevents chain slacking. Available as on optional kit for sectional side/center mount and hoist units. For sectional, options include: 14 RPM kit 26 RPM kit
Adjustable shaft	Output shaft of the optional direct coupling kits can be moved from one side to the other, providing flexible installation options.
NEMA 4/4X operators	Available for wet, dusty and corrosive environments.
New CodeDodger® commercial dual frequency cycling transmitters	Available in 1, 2, 3, 4-button and Open/Close/Stop versions. Automatically operates at both 315 and 390 Mhz every time a button is pressed.
Motors	The following motors are available when specified: Totally Enclosed Non Ventilated (TENV) Totally Enclosed Fan Cooled (TEFC).

Shop Drawing

Specifications

Product Literature

Instructional Manuals

Warranties

RHX Warranty (opens in a new window)
