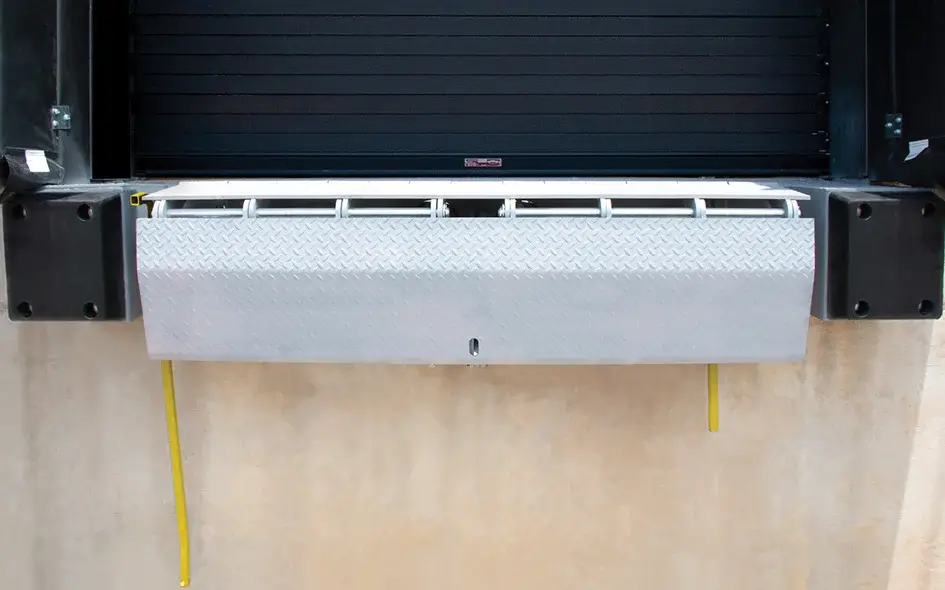

Edge of Dock Leveler - Mounting Options

Specifications

• Mounting Options – Approach Plates, Formed Angles, Wall Plates, Channel Embeds
• Material – Heavy-duty steel with powder coat finish
• Finish – Textured powder coat for enhanced traction and corrosion protection
• Environmental Compliance – U.S. EPA recommended eco-friendly coating process
• Color Options – Matches Edge of Dock Levelers
• Installation – Properly holed for anchoring, easy and fast setup
• Load Capacity – Rated for heavy-duty, high-traffic applications in demanding environments

Approach Plates

Smooth Transitions – Ideal for creating a continuous path between trailers and the building, enhancing safety and efficiency.

Protect workers and materials by reducing impact during loading/unloading.

APPROACH PLATE WITH KINK	PART #
12″ x 120″	851068.12120
18″ x 120″	851068.18120
24″ x 120″	851068.24120
12″ x 106″	851068.12106
18″ x 106″	851068.18106
24″ x 106″	851068.24106
12″ x 100″	851068.12100
18″ x 100″	851068.18100
24″ x 100″	851068.24100

APPROACH PLATE WITH BEVEL	PART #
12″ x 120″	851063.12120
18″ x 120″	851063.18120
24″ x 120″	851063.24120
12″ x 106″	851063.12106
18″ x 106″	851063.18106
24″ x 106″	851063.24106
12″ x 100″	851063.12100
18″ x 100″	851063.18100
24″ x 100″	851063.24100

Wall Plates

Secure Vertical Mounting – Best for installations where vertical mounting is needed for maximum steadiness.

Ensure superior alignment and long-lasting support.

WALL PLATE	PART #
13″ x 100″	851064.13100
13″ x 106″	851064.13106
13″ x 120″	851064.13120
16″ x 100″	851064.16100
16″ x 106″	851064.16106
16″ x 120″	851064.16120

Formed Angles

Enhanced Stability – Reinforced structural integrity perfect for areas with high traffic and heavy load demands.

Extend leveler performance in demanding environments and harsh conditions.

FORMED ANGLE WITH KINK	PART #
12″ x 13″ x 120″	851067.1213
16″ x 16″ x 120″	851067.1616
20″ x 20″ x 120″	851067.2020
24″ x 24″ x 120″	851067.2424

FORMED ANGLE WITH BEVEL	PART #
12″ x 13″ x 120″	851062.1213
16″ x 16″ x 120″	851062.1616
20″ x 20″ x 120″	851062.2020
24″ x 24″ x 120″	851062.2424

Channel Embeds

Seamless Concrete Integration – Ideal for new builds or dock retrofits for a durable foundation.

Integrate directly into concrete surfaces for a stable, secure dock system.

CHANNEL EMBED	PART #
8″ x 100″	851061.08100
8″ x 106″	851061.08106
8″ x 120″	851061.08120
10″ x 100″	851061.10100
10″ x 106″	851061.10106
10″ x 120″	851061.10120
