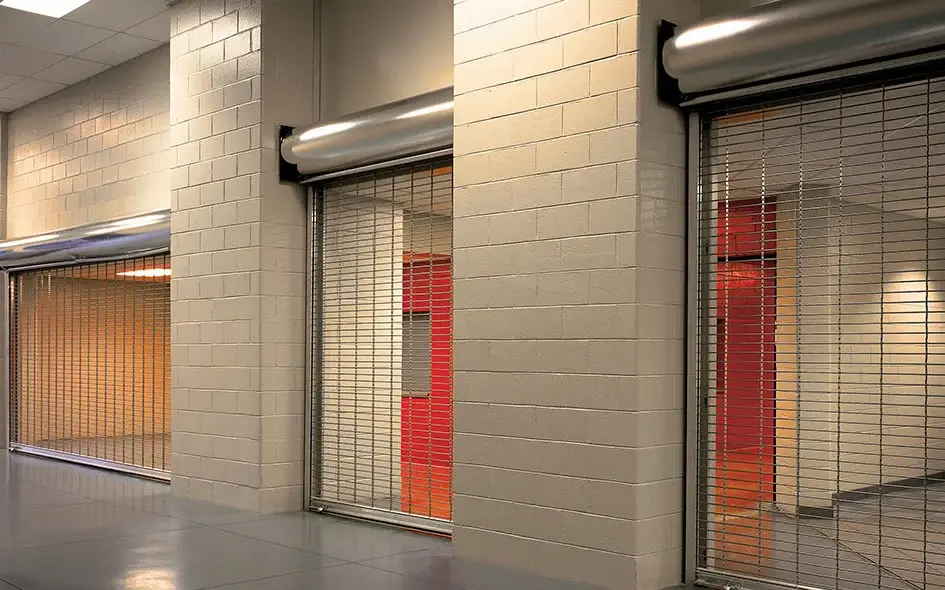

RSX® Egress Operators installed in a commercial setting, showcasing safety and security features with integrated grille systems.

Overhead Door RSX® Egress Operator mounted on grille, featuring integrated controls and UL325 compliance for safety in emergency situations.

RSX® Egress Operator

Standard Duty

The RSX^® Egress Operators are UL325 listed. These standard duty operators feature fully integrated controls to release egress grilles to the fully open position during emergency events.

Overview
Documents

Product Specifications
Mounting	Secure mounting options are available to fit: Front of hood, top of hood, wall mount, bench mount, or front of hood horizontal
Motor	Open drip-proof motor available in ½, and 1 horsepower, single or three-phase.
Progressive Breaking	Advanced DC break system bring the door to a smooth stop for less wear and tear
Advanced radio receiver system with auto seek frequency range	Quickly and easily learns up to 250 CodeDodger® transmitters. This system will automatically cycle between 315 and 390 frequencies. Can add and delete transmitters from the menu and easily identify which transmitters are operating the door.
Easy limit setting with LimitLock®	An electro/mechanical limit sensor that makes it easy to set and maintain limits.
Egress board	Alarm system and egress push-button inputs to release grille to fully open position
Easy installation and trouble-shooting with 16 character LCD display	Intelligent menu structure and expanded self-diagnostics including cycle counter functionality
Adjustable timed close feature	Standard feature on the main logic board can close door automatically. Timer can be set from two seconds to five minutes through the LCD display.
Voltage freedom with Voltamatic®	One unit for single phase voltages (115/208/230V), one unit for three phase voltages (208/230/460V) and one unit for three phase 575V.
Governor	Controls rate of door ascent.
Auto-tensioning SuperBelt®	Automatically adjusts itself to the correct tension.
UL325 listed	Requires the addition of monitored external entrapment devices prior to the operator working in momentary contact in the close direction.

Advantages
Floor level auto-reset	No manual intervention is required to reset after egress test activation. Door may be motor operated normally upon reset of the test key switch to the normal position. Limits stay synchronized with the door
Egress Module	Pre-installed egress board controls egress release functions after receipt of initiating device input or power
Alarm system integration	Alarm system input available for remote activation of egress grille opening. Includes an alarm output for notification to a remote alarm system.
Simplified installation	The release clutch and governor that control the door ascent are inside the operator allowing for an installation that is similar to a standard service door operator
Included accessories	Included accessories
Drive reduction	Primary reduction is SuperBelt®, an auto tension poly-V flex belt that does not require adjustment. Secondary reduction is by chain and sprocket.
Timed Close	Doors can be set to automatically close after a two second to five minute delay.
Mechanical brake system	24V DC Disc Brake. Fewer mechanical parts for improved reliability.
Reduction Clutch	Adjustable disc-type helps protect door and operator from major damage should the door meet an obstruction.
Release Clutch	Disconnects operator drive train allowing grille to travel to fully open position upon receipt of alarm signal, egress push-button operation, or power loss.
Cycle Counter	LCD (liquid crystal display) clearly indicates the exact number of cycles logged for easy preventative maintenance and support.
On-board radio receiver	Can add radio functionality to every job with no additional cost for the receiver. Stores up to 250 CodeDodger® transmitters with dual frequency cycling.
Limited warranty	RSX® Fire Door operator features a 2-year or 20,000 cycle limited warranty. See installation manual for complete limitations and details.
