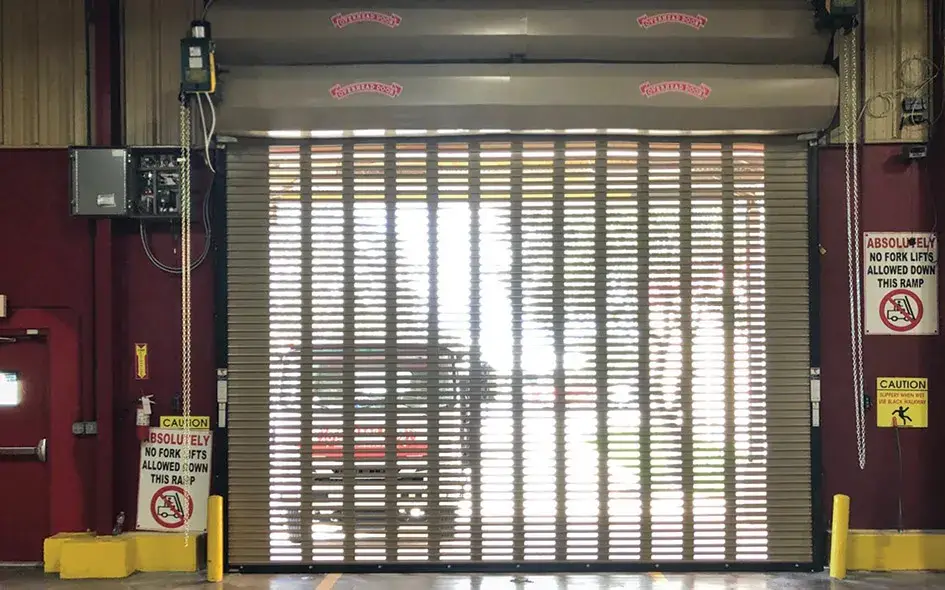

Rolling Steel Service Door Model 610 with a perforated design, showcasing durability and customization options, in a commercial setting.

Rolling Steel Service Doors Model 610 with perforated slats, showcasing galvanized steel construction and yellow safety posts.

Rolling steel service door model 610, featuring a gray finish, installed in a commercial setting with surrounding architectural elements.

Rolling steel service door model 610 in a commercial setting, featuring a galvanized steel curtain with slat design, automated operation system, and safety signage nearby.

Rolling Steel Service Door Model 610 with galvanized steel curtain, Overhead Door branding, and a worker using a hose for maintenance in a commercial setting.

Rolling Steel Service Doors, Model 610, installed in a commercial setting, showcasing industrial design and functionality with overhead operation system and safety features.

Rolling Steel Service Doors - 610

Model 610

Rolling steel door model 610 is a perennial best-seller for good reason. The standard features exceed the norm for quality and a myriad of options allow for true customization. The Model 610 is built with a standard galvanized steel curtain, or an optional stainless steel or aluminum curtain. The standard curtain slat is the attractive C-187 curved profile, with additional slat options available in curved and flat. Finishes range from four standard colors to approximately 200 powder coat colors or matched to your specification. A host of other options — including motor operation, pass doors, exhaust ports, between-jambs mounting, cylinder locks and special usage packages — allow the 610 to be adapted to any environment.

Security and Storm Shelter Model 610F is a specialized option designed for storm shelters, schools and emergency operations centers. Model 610F provides tornado resistance while meeting the high wind load and impact requirements for FEMA 361.

Overview
Documents

Construction

Product Specifications
Standard Max Width	30’4″ (9246 mm)
Standard Max Height	28’4″ (8636 mm)
Curtain	16 ga. galvanized steel up to 30’4″ (9246 mm) width (F-265 only) 18 ga. galvanized steel up to 30’4″ (9246 mm) width* 20 ga. galvanized steel up to 25’4″ (7722 mm) width* 22 ga. galvanized steel up to 18’4″ (5588 mm) width* 24 ga. galvanized steel up to 15’4″ (4674 mm) width* * not all slat profiles
Finish	Gray, tan, white or brown
Hood	24 ga. galvanized steel
Wind load	20 psf
Standard mounting	Face of wall
Operation	Manual push-up up to 84 sq. ft. (7804 sq.mm) or 12′ x 7′ (3658 mm x 2134 mm) Chain hoist over 84 sq. ft. (7804 sq.mm) or 12′ x 7′ (3658 mm x 2134 mm)
Standard springs	20,000 cycle
Weatherseals	Bottom bar astragal
Guides	Three structural steel angles PowderGuard® weathered finish with black powder coat
Bottom bar	Extruded aluminum with weatherseal up to 15’4″ (4674 mm) Back-to-back steel angles with weatherseal more than 15’4″ (>4674 mm)
Lock	Interior slide bolt on push-up Padlockable chain keeper on chain hoist

Warranty

24-month limited on door
3 year/20,000 cycles limited on door & operator system (when purchased together)

Fenestration

Curved slat with 3″ x 5/8″ fenestration

Curved slat design with fenestration openings, showcasing the Rolling Steel Service Door Model 610 by Overhead Door Company, featuring a powder-coated finish and structural steel angles.

F265 slat with 10″ x 1″ fenestration

BIM

Rolling Steel Service Doors Model 610 BIM (opens in a new window)

Shop Drawing

Specifications

Product Literature

Warranties

45040 42nd St. E., Lancaster, CA 93535

Business Hours

Monday-Friday: 8:00 AM – 5:00 PM
Saturday-Sunday: Closed

CA Contractors License #881400

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Rolling Steel Service Door Model 610 Benefits

The Rolling Steel Service Door Model 610 is a top choice for businesses seeking a durable and reliable door solution. Its robust construction and versatile design make it suitable for a wide range of commercial applications, ensuring long-term performance and security.

This model stands out due to its perennial best-seller status, a testament to its proven track record. It offers a balance of strength, functionality, and aesthetic appeal, making it an excellent investment for any commercial property requiring secure and efficient access.

Model 610 Curtain Material Options

The curtain of the Rolling Steel Service Door Model 610 is engineered with various galvanized steel gauges to meet different durability and application needs. This allows for customization based on the required strength and expected usage intensity.

Available in gauges from 16 ga. up to 24 ga., the curtain's strength and maximum width capacity vary accordingly. For instance, 16 ga. galvanized steel supports widths up to 30'4", while 24 ga. is suitable for widths up to 15'4", ensuring a tailored fit for diverse opening sizes.
