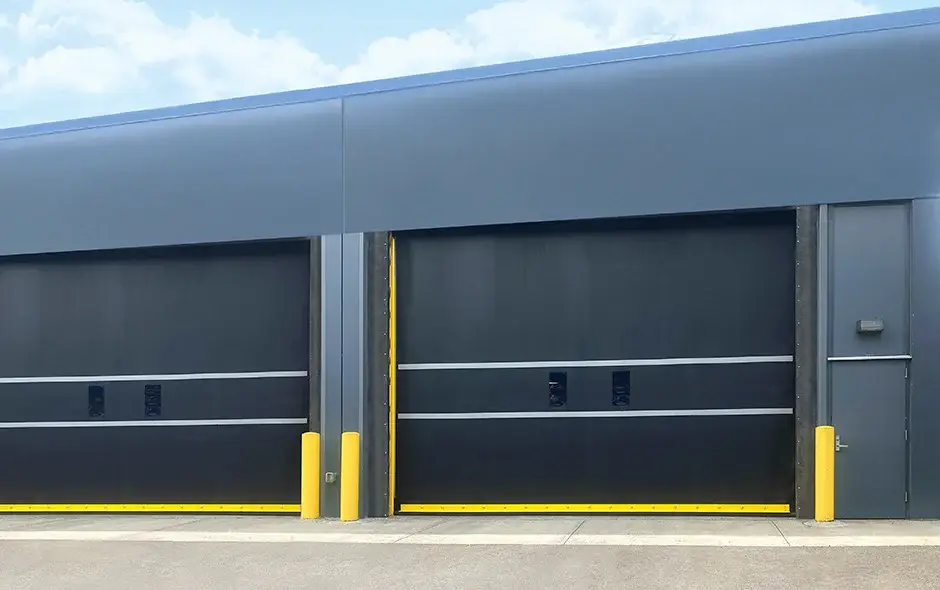

High Speed Exterior Rubber Door Model 995 with heavy-duty black rubber curtain, yellow safety strip, and dual infrared sensors, designed for commercial use in harsh conditions.

High-speed exterior rubber door Model 995 with multi-reinforced NBR rubber curtain and safety features, installed in a commercial setting.

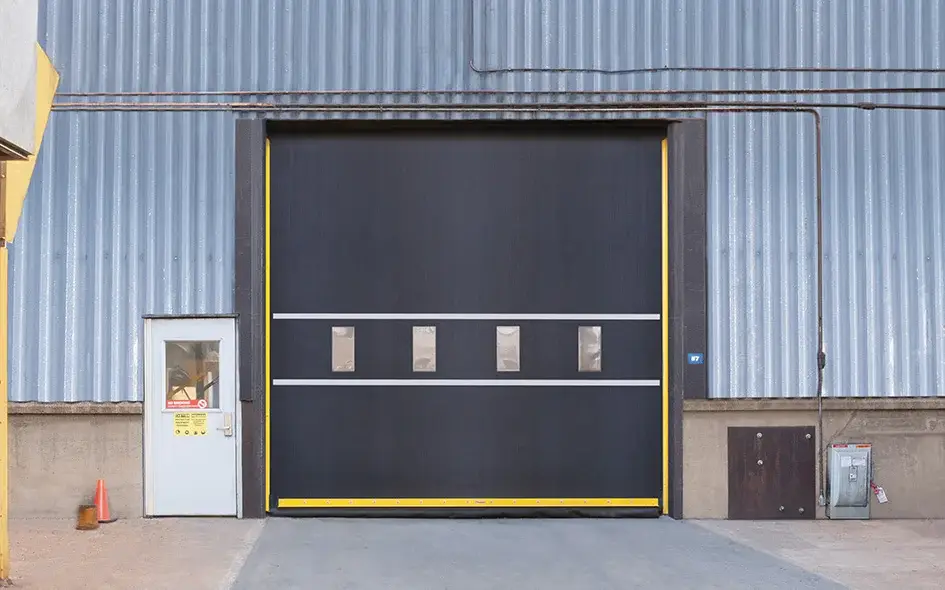

High-speed exterior rubber door model 995 with black curtain and yellow frame, designed for commercial applications, showcasing durability and safety features.

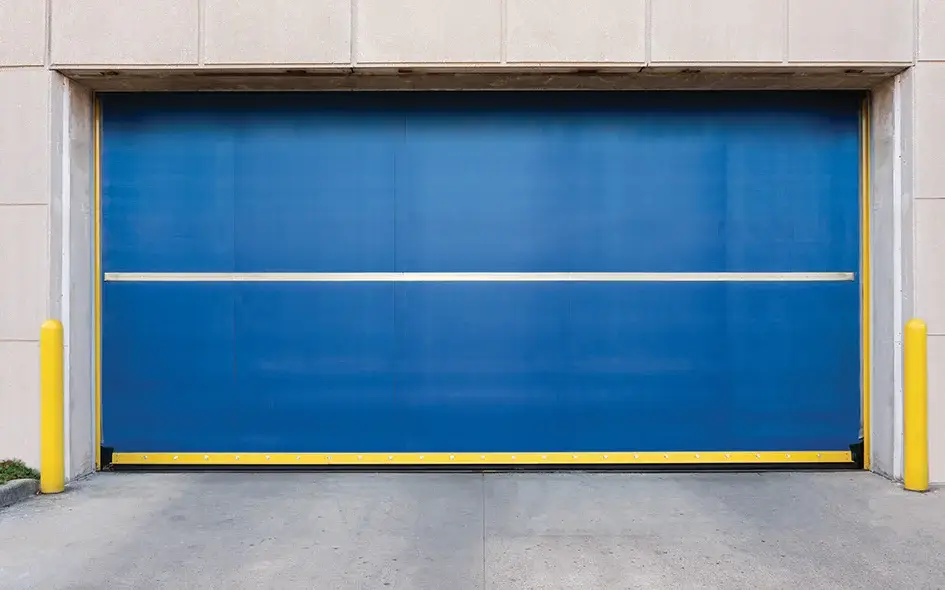

High-speed exterior rubber door Model 995 in blue, featuring multi-reinforced construction and yellow base, designed for commercial use in harsh conditions.

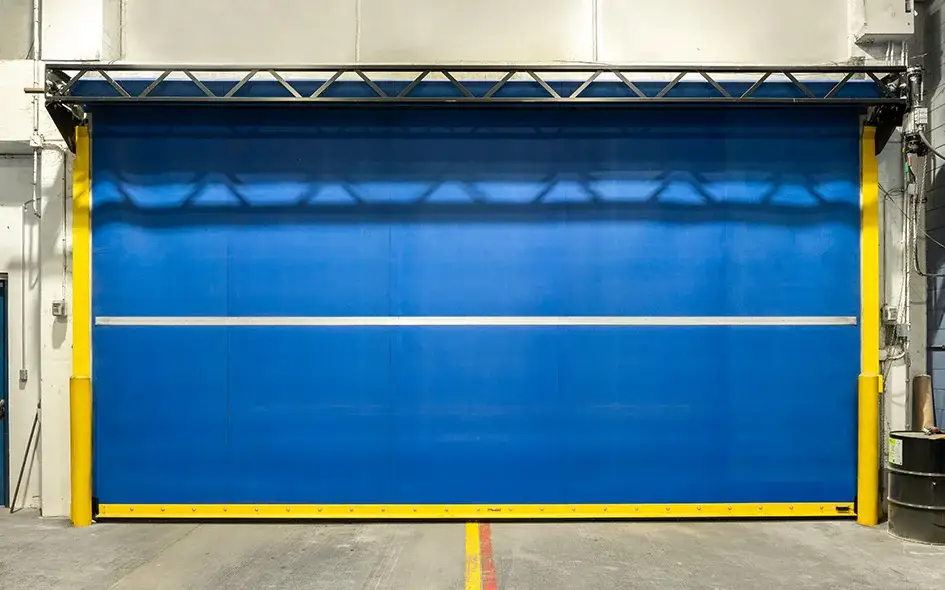

High-speed exterior rubber door, model 995, featuring a blue NBR rubber curtain and yellow frame, designed for commercial applications in harsh environments.

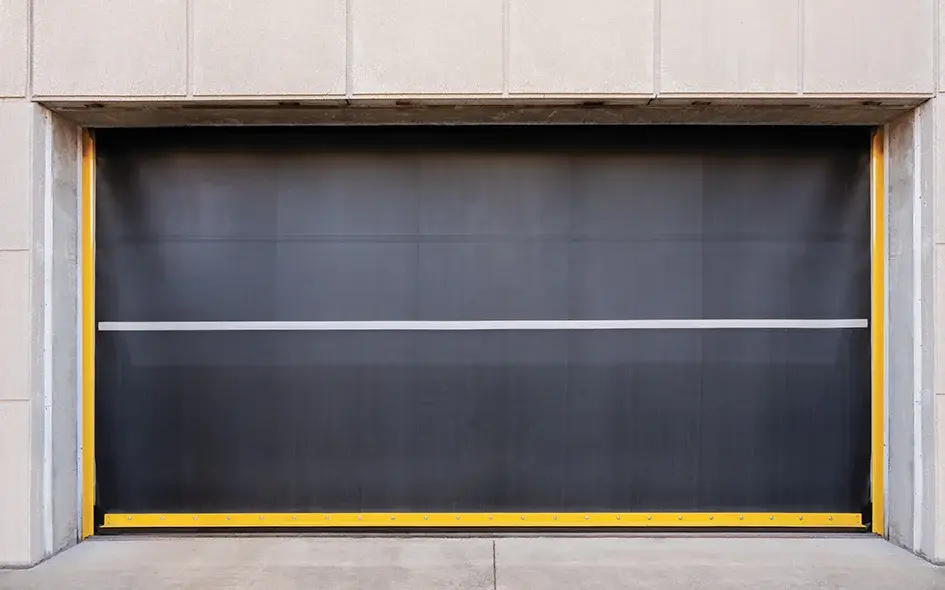

High Speed Exterior Rubber Door Model 995 with multi-reinforced NBR rubber curtain and safety features, designed for commercial use in harsh environments.

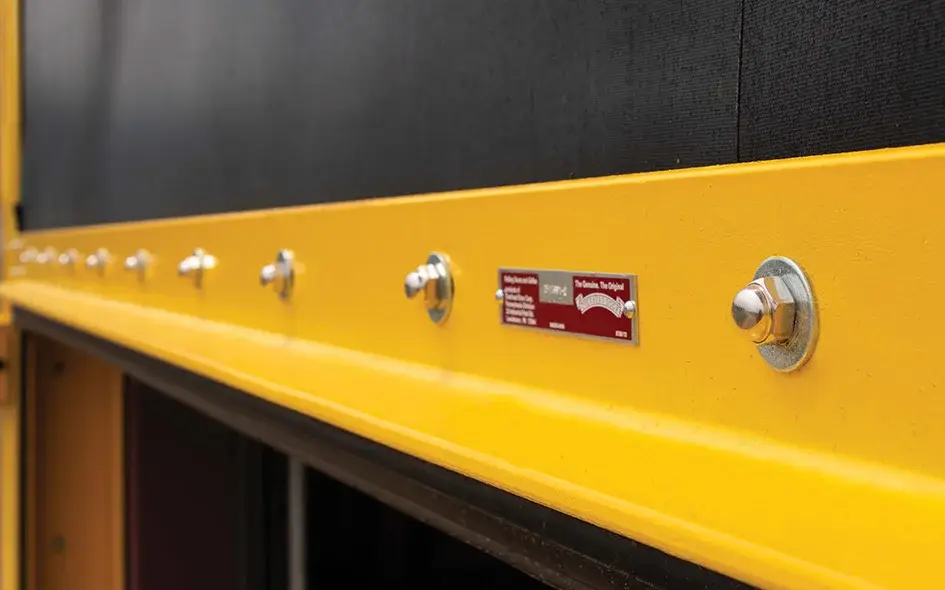

High-speed rubber door mechanism featuring yellow metal framework, bolts, and safety label, representing the RapidFlex® Model 995 for commercial applications.

High-speed exterior rubber door Model 995 by Overhead Door Company, featuring a black curtain with a yellow frame, mounted on a blue wall, showcasing safety and durability for commercial use.

High Speed Exterior Rubber Door - 995

Model 995

RapidFlex^® Model 995 is a heavy-duty exterior high speed rubber door that features a multi-reinforced NBR rubber curtain and high strength guide construction to withstand harsh exterior conditions. It features an independently tested wind load of up to 27.0 psf*. The RapidFlex^® Model 995 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors and door stop device. Perfect for parking garages, food/beverage, mining, auto/transit and manufacturing facilities.

Overview
Documents

Construction

Product Specifications
Standard Max Width	30′
Standard Max Height	30′
Speed	Up to 50″ per second
Break-away Self-reset	Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Strut	Not available
Curtain Material	5 layers of NBR rubber; 4 layers of polyester weave
Operation	Direct drive motor and gearbox system with a door stop device
Control Panel	Variable frequency drive NEMA 4X cULus listed Onboard self diagnostic and service reminder Built-in padlockable field disconnect
Obstruction Detection	2 sets of infrared sensor mounted proximity to the door path
Reversing Safety Edge	Wireless monitored reversing edge
Electrical Availability	208V AC 3PH^†, 230V AC 3PH; 460V AC 3PH; 575V AC 3PH^† (^†requires stand-alone mounted transformer)
Wind Load*	Up to 27.0 psf

_{* Pressure/wind resistance value is the ultimate pressure tested at door width of 19′.}

Warranty

5-year Limited

BIM

RapidFlex High Speed Rubber Door – Model 995 BIM (opens in a new window)

Shop Drawing

Specifications

Product Literature

45040 42nd St. E., Lancaster, CA 93535

Business Hours

Monday-Friday: 8:00 AM – 5:00 PM
Saturday-Sunday: Closed

CA Contractors License #881400

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Durable Construction for Harsh Environments

The RapidFlex® Model 995 is engineered with a robust curtain material, featuring five layers of NBR rubber reinforced by four layers of polyester weave. This multi-layered construction provides exceptional resistance to tears, abrasions, and impacts, making it ideal for demanding exterior applications where durability is paramount.

Further enhancing its resilience, the door incorporates a break-away design that allows it to detach from the side guides upon impact, minimizing damage. This feature is complemented by a self-resetting mechanism, enabling the door to be easily realigned and operational after an incident without requiring complex repairs.

Advanced Safety and Operational Features

Safety is a core consideration for the Model 995, evident in its integrated obstruction detection system. Two sets of infrared sensors are strategically mounted near the door's path to immediately detect any objects or personnel, triggering an automatic reversal to prevent accidents.

Operation is managed by a direct drive motor and gearbox system, ensuring smooth and reliable performance. The control panel utilizes a variable frequency drive for precise speed control, up to 50 inches per second, and includes a NEMA 4X cULus listed enclosure for protection against environmental factors. It also features onboard self-diagnostics and a service reminder, along with a padlockable field disconnect for added security.
