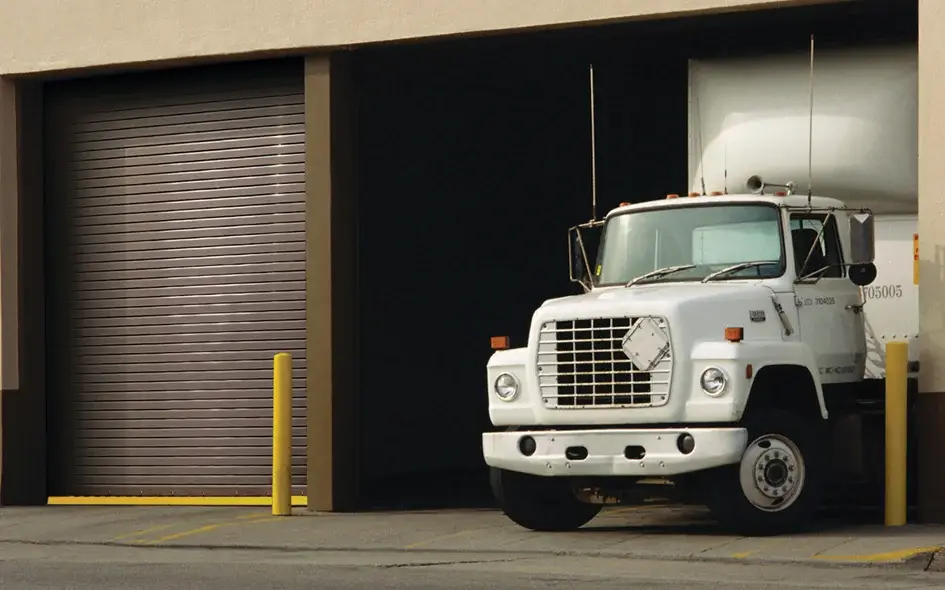

White truck parked in front of a closed Advanced Rolling Steel Service Door 626, highlighting commercial use and durability in climate-controlled environments.

Advanced Rolling Steel Service Door 626 by Overhead Door Company, featuring a gray insulated design suitable for climate-controlled environments.

Advanced Rolling Steel Service Door Model 626, insulated, installed in a commercial setting, showcasing durability and energy efficiency for climate-controlled applications.

Advanced Rolling Steel Service Doors 626

Model 626

RapidSlat® Model 626

These insulated advanced service doors are perfect for climate controlled situations and applications with weather extremes such as external doors on a food manufacturing facility.

Overview
Documents

Construction

Product Specifications
Standard Max Width	up to 30′ (9246 mm) depending on gauge and slat type
Standard Max Height	up to 20′ (6096 mm) depending on gauge and slat type
Insulation	R-value of 7.71 (1.35 W/m2) for energy-efficiency. U-value of .13 and sound transmision rating of 21.
Mounting	Interior or exterior face of wall
Control panel	Variable frequency drive controller with self-diagnostics (time delay self-close timer and non-resettable cycle counter included); LCD readout, enclosure NEMA 4X rated
Curtain	Galvanized steel interlocking roll-formed slats, end locks attached to prevent lateral movement; Insulated flat profile (F-265i) for doors up to 30′ wide – front and back slats 24 gauge. Slat cavity shall be filled with CFC-free, foamed in-place, polyurethane insulation
Curtain finish	Gray, tan or white PowderGuard® Max powder coat with hardening additive
Bottom bar	Two PowderGuard® Premium powder coated black angles (min. thickness 3/16”) with 2-wire, self-monitoring, fail safe, electric sensing edge
Hood	24 gauge galvanized steel primed, black painted; interior hood baffle included
Brackets	Min. ¼” hot rolled primed, PowderGuard® Premium powder coated black steel
Guides	Three structural steel angles PowderGuard® Premium powder coated black
Door roll	Direct driven, springless roll with integrated shafts; self-aligning grease-able sealed bearings; door does not require counterbalance device
Stormtite™ perimeter seal system	Exterior guide seal, interior hood baffle, bottom astragal
Safety devices	Built-in brake mechanism provides additional peace-of-mind against uncontrolled curtain travel Wireless monitored safety edge – all doors are equipped with a mandatory reversing or sensing edge to prevent entrapment. Photoelectric safety sensors with guards – provide additional safety during door operation to help prevent injury and damage
Operation	Direct drive, integrated gear motor/brake assembly (up to 24” per sec up speed / 12” per sec down speed); drive assembly and limit sensors are factory pre-assembled. Manual hand chain for power outage. Horsepower is appropriate to size and weight of door. 230V AC 3-phase motor
Actuator	Single open/close/stop push button station incorporated into control panel
Wind load	20 psf when optional wear strips are not specified

Warranty

5 year limited warranty coverage on all mechanical door system components and control panel hardware.

BIM

RapidSlat Rolling Steel Service Doors Model 626 BIM (opens in a new window)

Shop Drawing

RapidSlat® Springless Advanced Performance Insulated Rolling Steel Service Door Model 626 CAD (PDF) (opens in a new window)
RapidSlat® Springless Advanced Performance Insulated Rolling Steel Service Door Model 626 CAD (DWG) (opens in a new window)

Specifications

Product Literature

Warranties

45040 42nd St. E., Lancaster, CA 93535

Business Hours

Monday-Friday: 8:00 AM – 5:00 PM
Saturday-Sunday: Closed

CA Contractors License #881400

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Advanced Rolling Steel Doors: Key Features

The Model 626 Advanced Rolling Steel Service Doors are engineered for demanding environments, offering superior insulation and robust construction. These doors are ideal for climate-controlled facilities and applications exposed to significant weather fluctuations, such as food manufacturing plants, ensuring product integrity and operational efficiency.

Key features include an R-value of 7.71 for exceptional energy efficiency, galvanized steel interlocking slats with end locks to prevent lateral movement, and a flat insulated profile (F-265i) capable of spanning up to 30 feet wide. The curtain is constructed from 24-gauge steel for durability and longevity.

Model 626 Control and Safety Systems

Ensuring optimal performance and safety, the Model 626 incorporates an advanced variable frequency drive (VFD) controller. This sophisticated system includes self-diagnostic capabilities, a time-delay self-close timer, and a non-resettable cycle counter, all managed through an easy-to-read LCD display.

The control panel is housed in a NEMA 4X rated enclosure, providing protection against dust and water ingress, making it suitable for harsh industrial settings. This robust control system ensures reliable operation and contributes to the overall safety of the door system.

Advanced Rolling Steel Service Doors 626​
